Spartan Mixer
Specification(PDF)

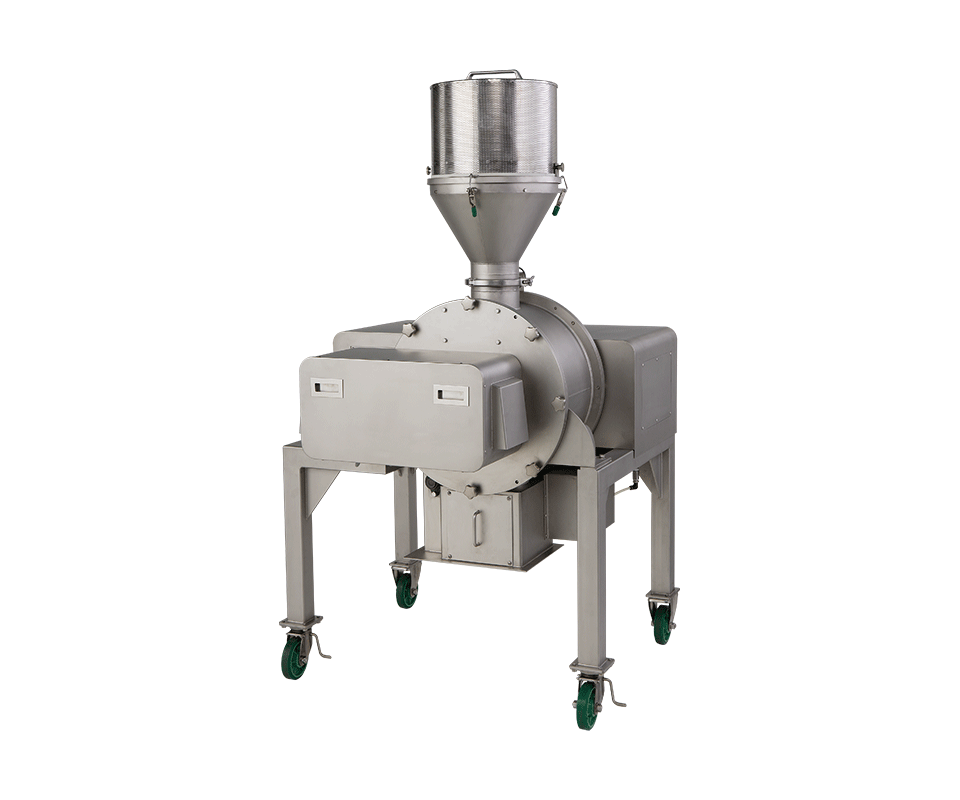

Dry and wet mixing Spartan Mixer

In this machine, the Spartan Granulator has been transformed into a high-performance mixer.

This is a high performance, high shear mixer for the dry mixing.

  • Unique Structure : A high-speed chopper rotor horizontally center-mounted and a mixing arm to eliminate the dead zone in the mixing chamber, which can contribute to make product dispersion uniformly and efficiently in very short period of time.
  • A high speed – large chopper produces strong shearing force and makes effective dispersion even against sticky and agglomerate natured products.
  • High cost performance due to the very short dispersion-mixing time taken, which could consider a relatively smaller scale machine to process the same volume than on different type of mixers, and this could lead to less installation spaces, energy taken and other equipment scales involved in the process line.
  • Easy disassembly for cleaning
  • High product yield, less product left in the mixing chamber at the time of discharge
  • S-cutter type of knives instead of the chopper rotor as an option can be available against adhesive products.
  • As additional process function in the Spartan mixer, surface modification on process products can be obtained depending on the process products

Application examples

  • Pharmaceutical products
  • Electrical Materials
  • Materials for Battery
  • Chemicals

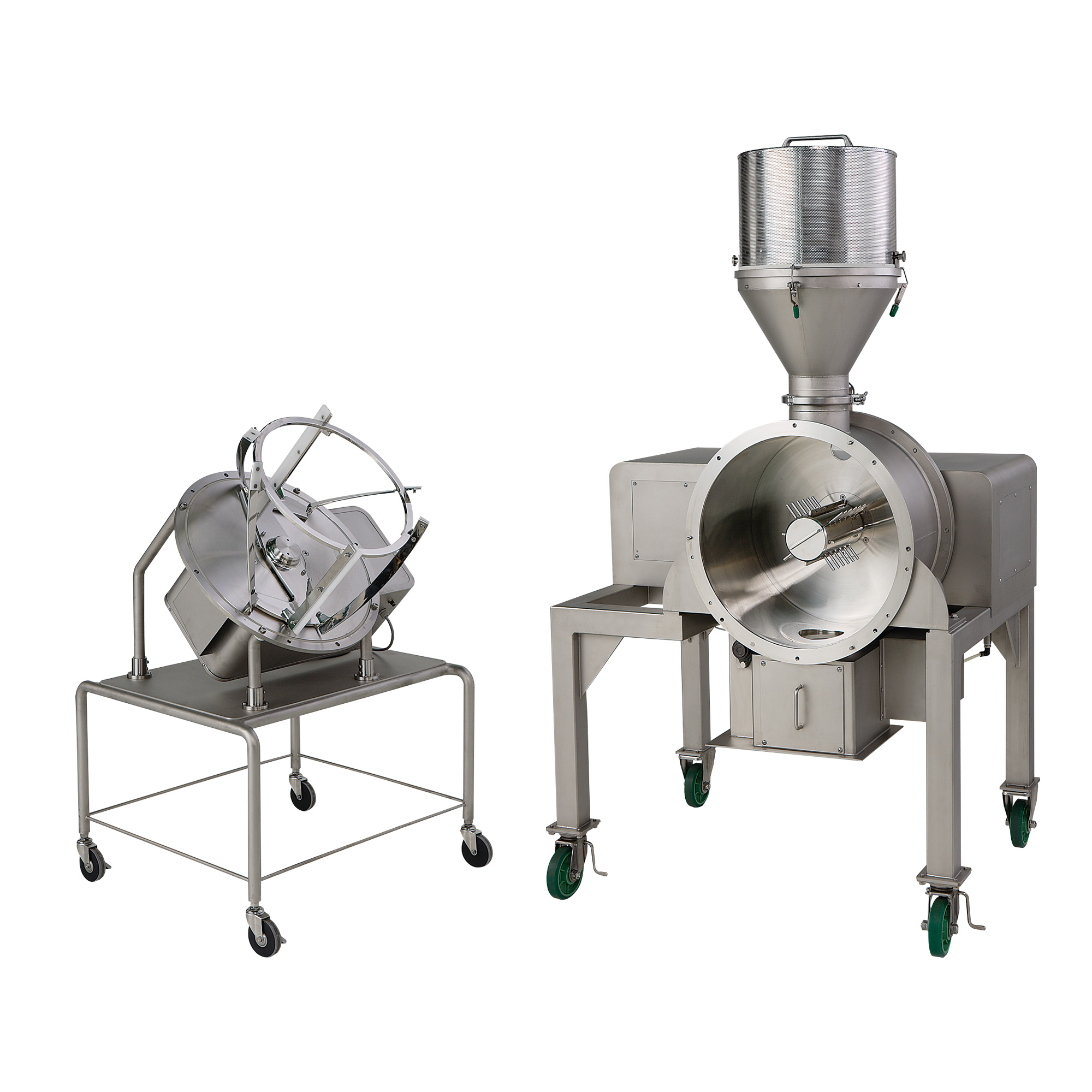

SPMJ-80 model

SPMJ-80 model

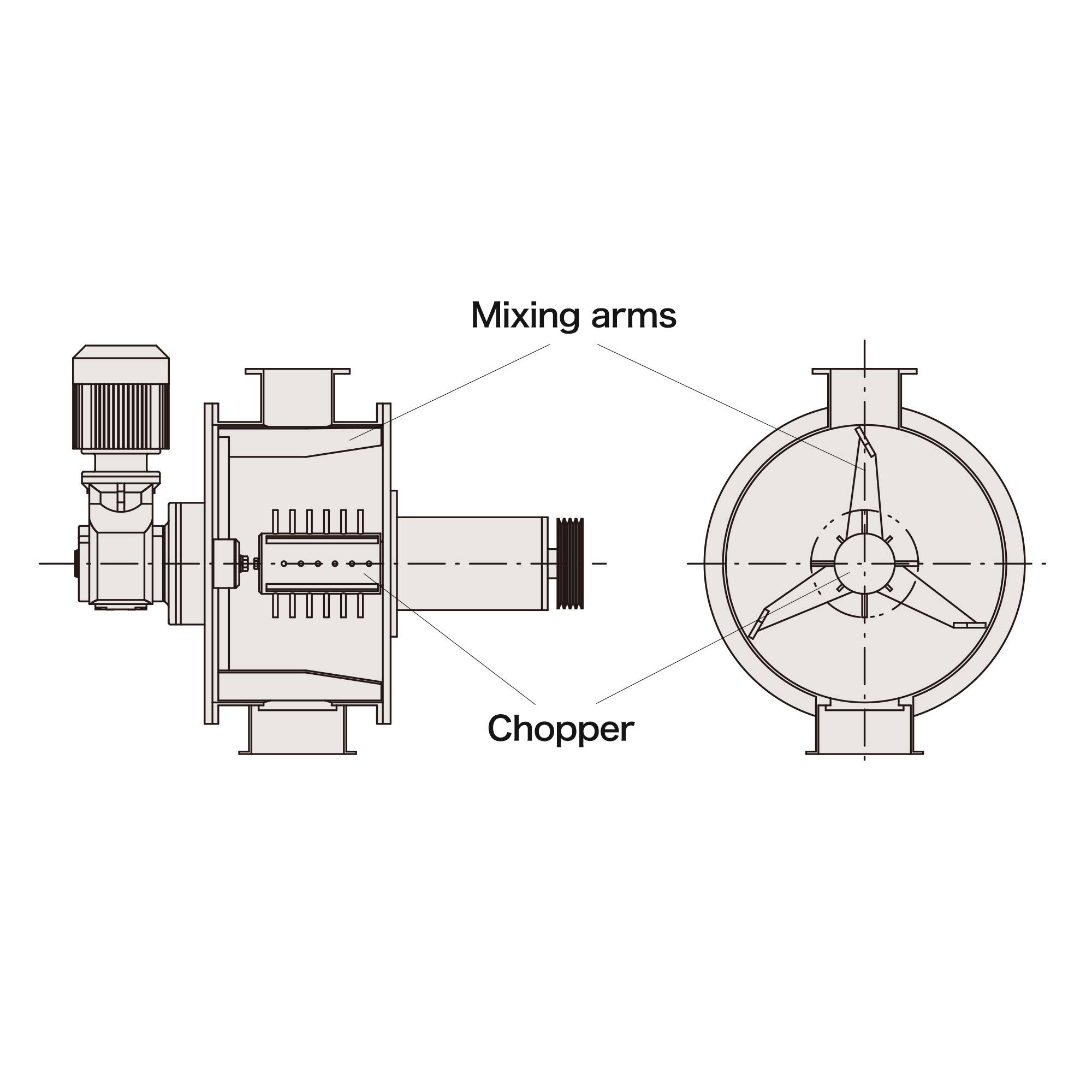

Mixing arms
The whole raw material is circulated and agitated, and is supplied to the chopper in cascades

Chopper
Strong impact and shearing effect
Dispersing and mixing effect at the primary particle level

Mixing arms
The whole raw material is circulated and agitated, and is supplied to the chopper in cascades

Chopper
Strong impact and shearing effect
Dispersing and mixing effect at the primary particle level

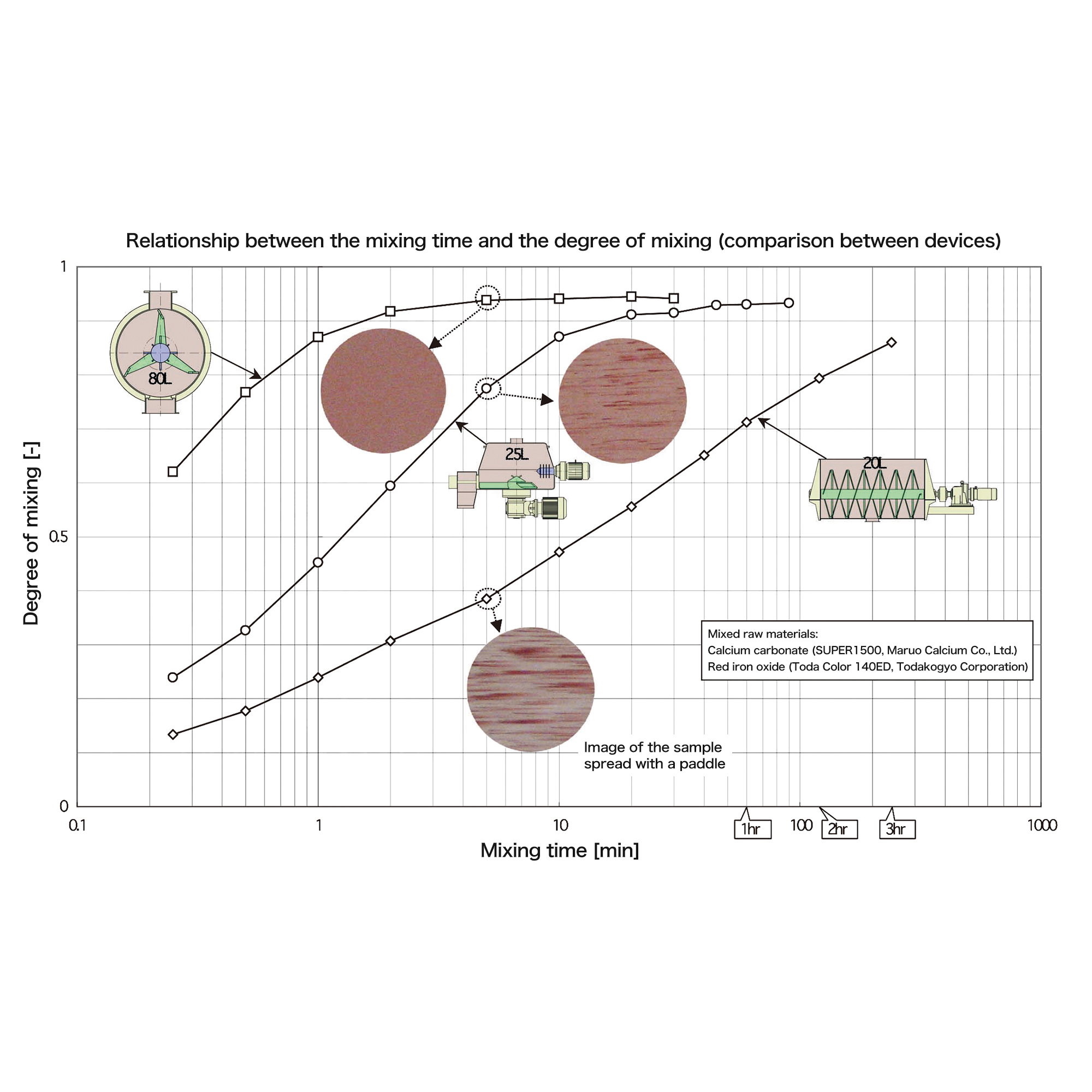

Relationship between the mixing time and the degree of mixing (comparison between devices)

Relationship between the mixing time and the degree of mixing (comparison between devices)

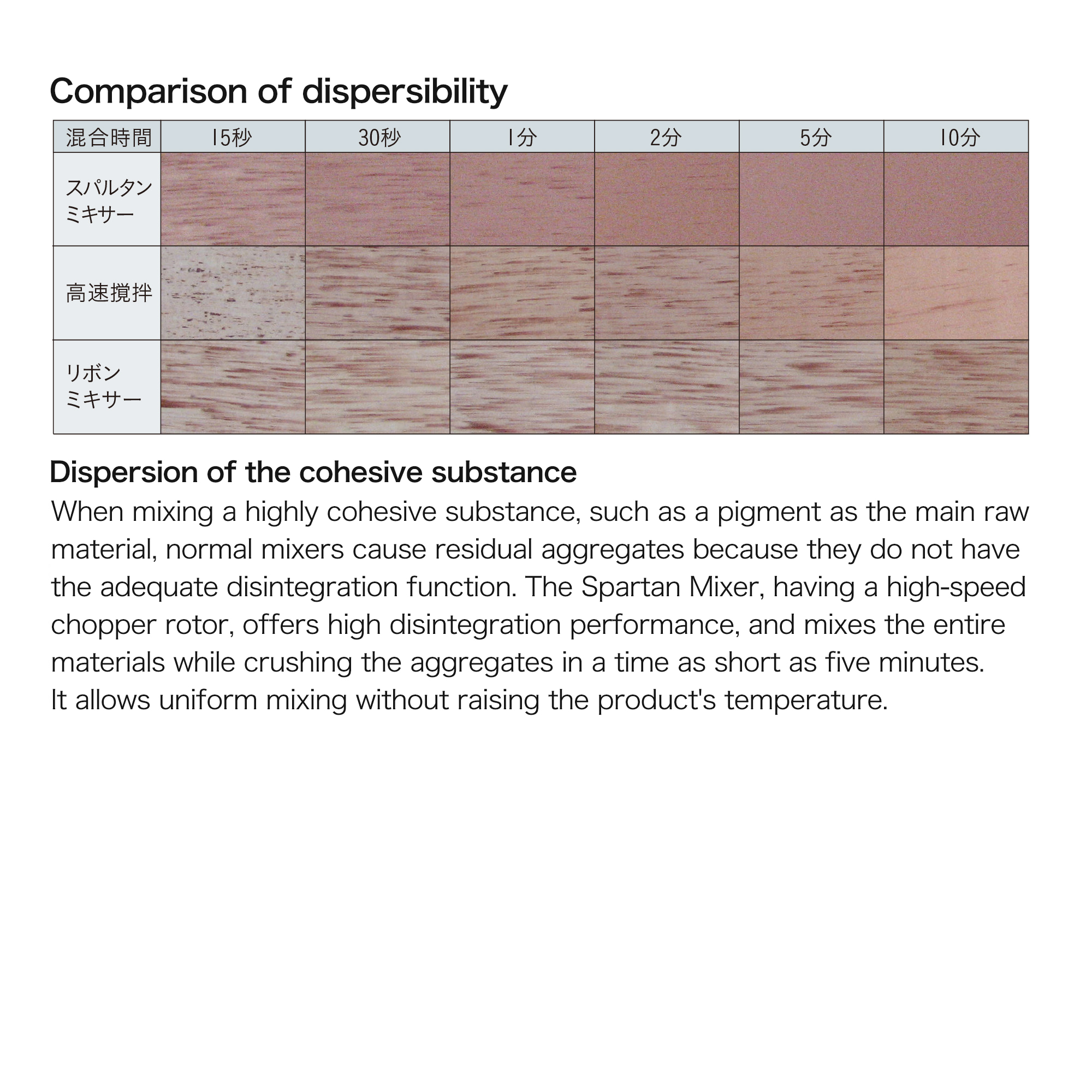

Dispersion of the cohesive substance

Dispersion of the cohesive substance

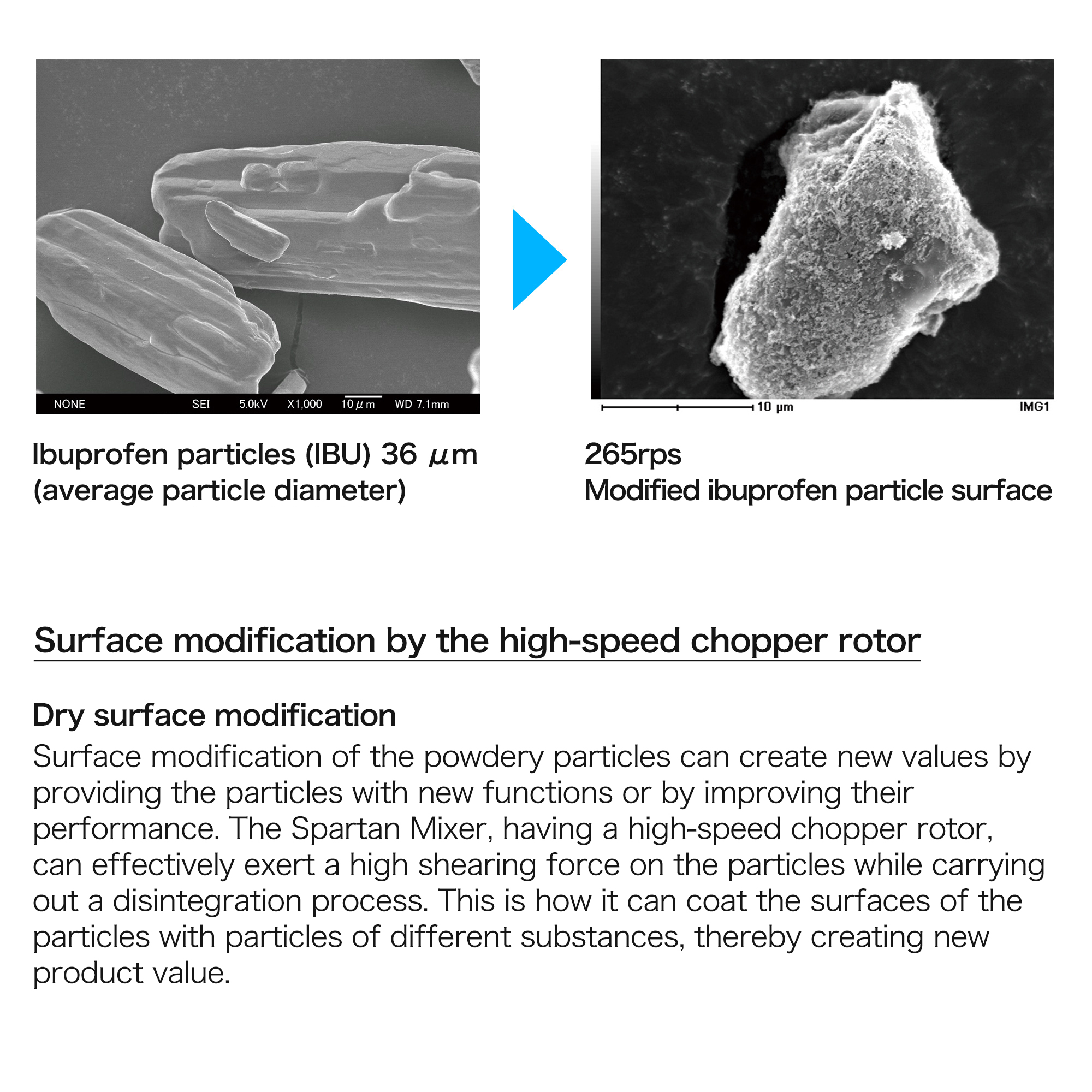

Surface modification by the high-speed chopper rotor

Surface modification by the high-speed chopper rotor

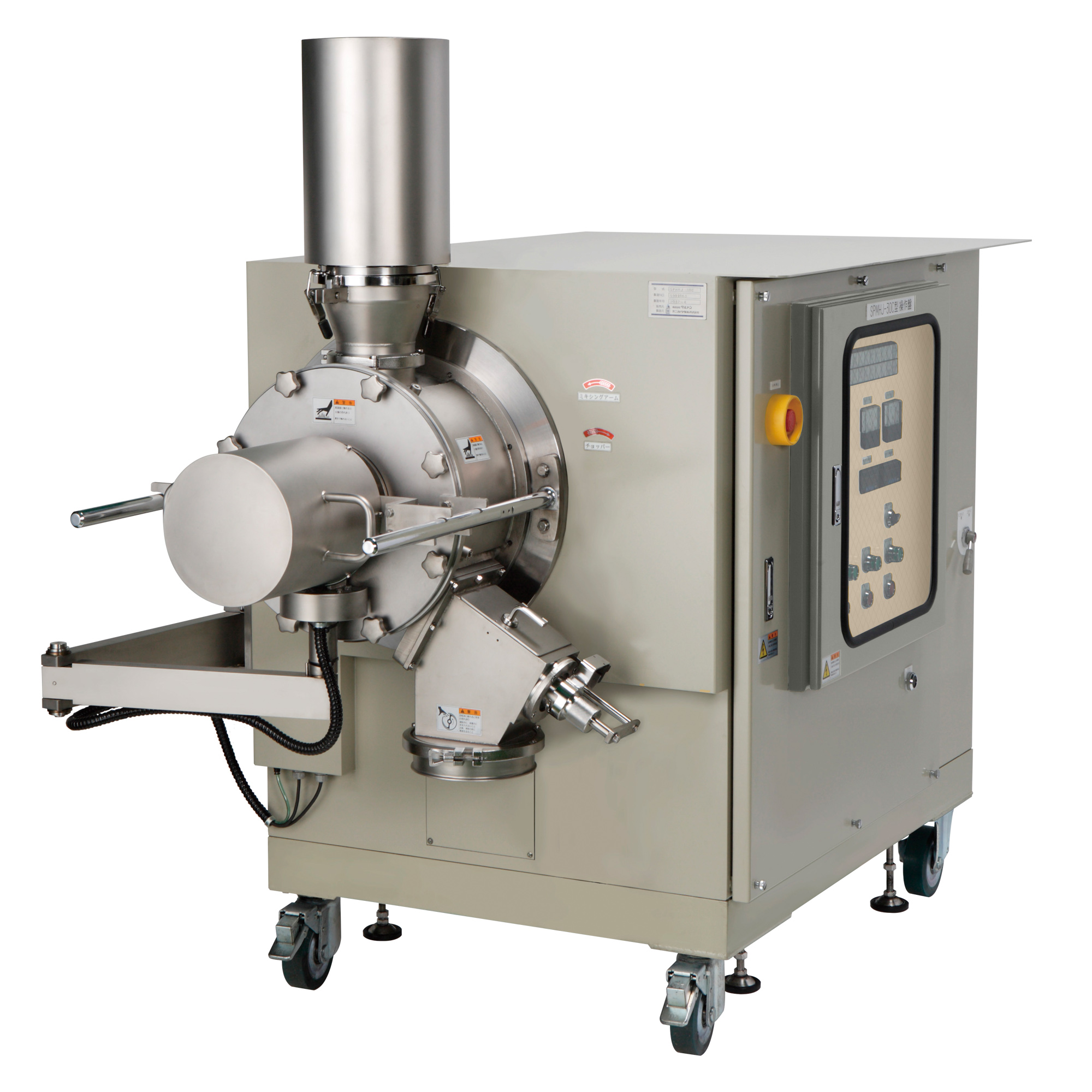

SPMHJ-30C type

SPMHJ-30C type

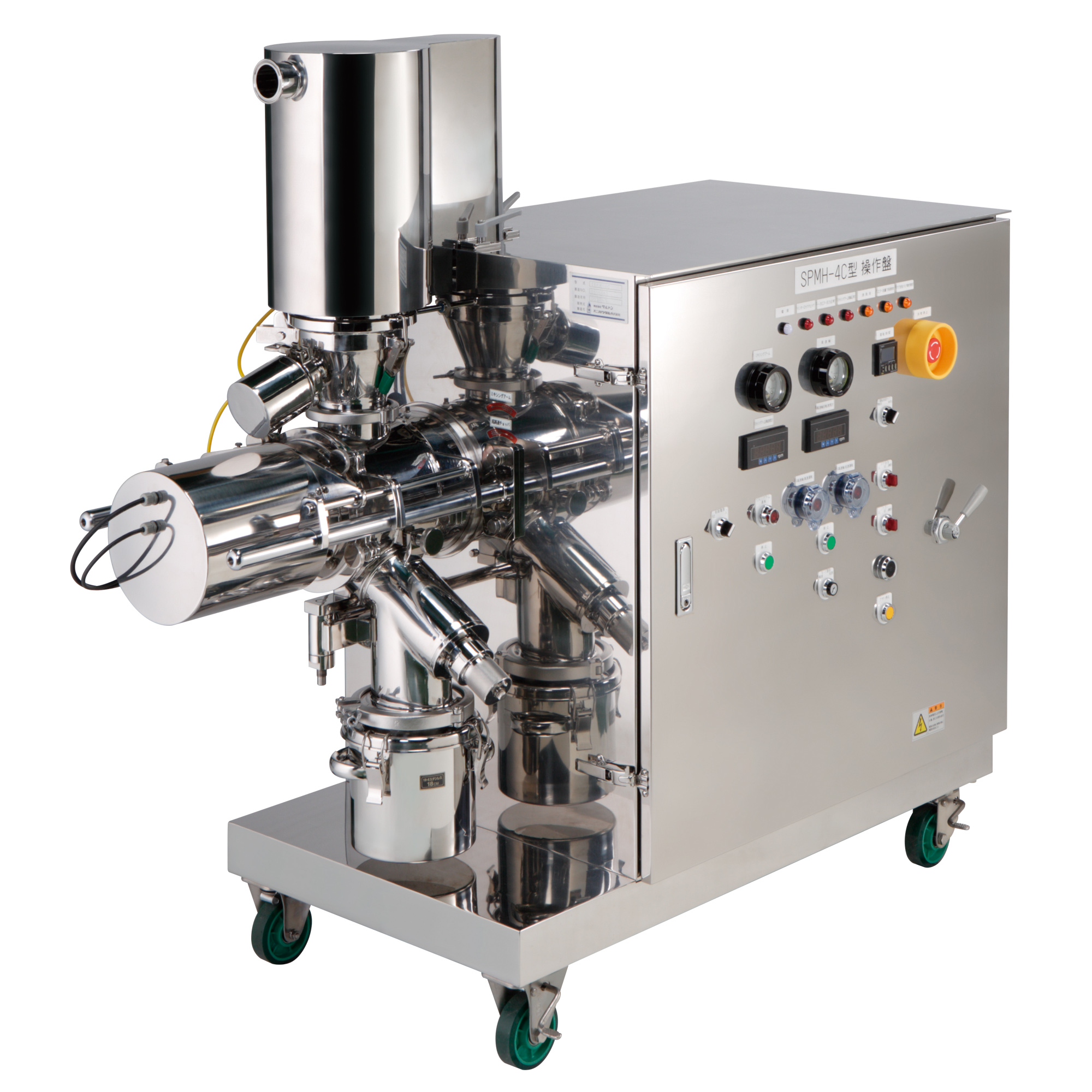

SPMH-4C type

SPMH-4C type
